Part 3: Aircraft Paint & Surface Protection
Module 3.1: Surface Preparation, Chemical Pre-Treatments & Coating Layers
An organic aircraft coating system acts as the primary barrier against severe atmospheric corrosion, chemical attack (e.g., Skydrol hydraulic fluid and jet fuel), and UV degradation. Proper surface preparation and chemical pre-treatment form the foundation of paint adhesion and structural longevity.
1. Mechanical & Chemical Surface Preparation
Improper cleaning leads to inter-coat delamination, filiform corrosion, and premature coating failure.
A. Degreasing & Solvent Cleaning
- Purpose: Removes oils, shop grease, and waxes before sanding. Sanding without degreasing embeds contaminants deep into the surface micro-scratches.
- Method: Use the Two-Rag Wipe Method with approved solvents (MEK or Isopropyl Alcohol):
- Apply solvent using a clean, lint-free cloth to dissolve contaminants.
- Immediately wipe dry using a second clean, dry cloth before the solvent evaporates.
B. Mechanical Abrasive Cleaning
- Aluminum Alloys: Sand using non-metallic abrasives such as fine aluminum oxide paper or Scotch-Brite pads (220-grit to 320-grit).
- Strict Safety Rule: Never use steel wool or carbon steel wire brushes on aluminum. Embedded steel particles cause rapid galvanic pitting corrosion.
2. Chemical Pre-Treatments: Etch & Conversion Coatings
After exposing raw aluminum, chemical treatments neutralize surface oxides and form a corrosion-resistant substrate that bonds chemically with the primer.
A. Acid Chemical Etch & Brightener
- Purpose: Strips heavy oxide films and micro-roughens the aluminum surface to optimize mechanical bonding.
- Water-Break-Free Test: Spray clean water onto the etched surface. If the water sheets out uniformly for at least 30 seconds without beading, the surface is chemically clean.
B. Chemical Conversion Coatings (Chromate vs. Non-Chromate)
Converts active aluminum into an inert chemical film.
- Chromate Conversion (e.g., Alodine 1200S): Produces a golden amber/yellow film. Offers superior corrosion protection and self-healing chemical properties.
- Non-Chromate / Trivalent Conversion: Produces a clear to light blue/gold tint. Environmentally compliant (REACH/EPA compliant) while maintaining strong corrosion resistance.
3. Structural Paint Coating System Stackup
An aircraft finish consists of distinct layers working together to protect the structural skin.
A. Epoxy Primers (Corrosion Protection Layer)
- Chemistry: Two-part epoxy polyamide resin systems containing corrosion inhibitors (strontium chromate or zinc phosphate).
- Induction Time: Requires a 30-minute induction period (standing time) after mixing base and activator prior to application.
- Dry Film Thickness (DFT): $0.0006”$ to $0.0009”$ [0.015 mm to 0.023 mm] (or $15\text{ µm}$ to $23\text{ µm}$).
B. Polyurethane Topcoats (Durability & Aesthetics Layer)
- Chemistry: Two-part polyurethane resin offering resistance to Skydrol, UV light, and thermal extremes ranging from $-65^\circ\text{F}$ to $120^\circ\text{F}$ [$-54^\circ\text{C}$ to $49^\circ\text{C}$].
- Recoat Window: Apply topcoat within $2$ to $24\text{ hours}$ of primer application. If exceeded, scuff sand the primer to ensure mechanical adhesion.
- Dry Film Thickness (DFT): $0.0015”$ to $0.0020”$ [0.038 mm to 0.051 mm] (or $38\text{ µm}$ to $51\text{ µm}$).
4. Layer Dimensions & Technical Specification Summary
| System Layer | Material Standard | Target Dry Film Thickness (Imperial) | Target Dry Film Thickness (Metric) | Primary Technical Function |
| Pre-Treatment | Alodine 1200S / Non-Chromate | Microscopic chemical film | Microscopic chemical film | Inhibits oxidation & promotes chemical adhesion |
| Epoxy Primer | Two-part Chromated Epoxy | $0.0006”$ – $0.0009”$ | [0.015 mm – 0.023 mm] | Active corrosion inhibition & bonding layer |
| Polyurethane Topcoat | Two-part Polyurethane | $0.0015”$ – $0.0020”$ | [0.038 mm – 0.051 mm] | UV shielding, fluid resistance & high gloss finish |
| Total Build | Complete System Stackup | $0.0021”$ – $0.0029”$ | [0.053 mm – 0.074 mm] | Complete structural environmental barrier |
Module 3.2: HVLP Spray Setup, Viscosity Measurement & Defect Troubleshooting
Achieving a durable, defect-free aviation finish requires precise control over application equipment, fluid dynamics, and environmental conditions. This module covers HVLP spray gun configuration, viscosity testing with a Zahn cup, Dry Film Thickness (DFT) verification, and systematic paint defect troubleshooting.
1. HVLP Equipment Setup & Operating Parameters
High-Volume, Low-Pressure (HVLP) spray equipment is mandated across aviation maintenance to maximize transfer efficiency (typically $>65\%$) and minimize overspray bounce-back.
A. Air Pressure & Fluid Tip Geometry
- Atomization Pressure (Air Cap): Max $10.0\text{ PSI}$ [68.9 kPa] at the air cap to maintain HVLP compliance.
- Inlet Pressure (Gun Handle Gauge): Typically adjusted between $25.0\text{ PSI}$ and $35.0\text{ PSI}$ [172.4 kPa to 241.3 kPa] depending on fluid viscosity and hose length.
- Fluid Tip / Needle Selection:
- Epoxy Primers: $0.047”$ to $0.055”$ [1.2 mm to 1.4 mm] fluid tip.
- Polyurethane Topcoats: $0.039”$ to $0.051”$ [1.0 mm to 1.3 mm] fluid tip.
B. Spraying Technique & Distance
- Gun Distance: Maintain a perpendicular distance of $6.0”$ to $8.0”$ [152.4 mm to 203.2 mm] from the aircraft skin.
- Overlap Pattern: Maintain a $50\%$ to $65\%$ overlap on each pass to ensure uniform wet film thickness without banding.
2. Viscosity Measurement (Zahn Cup Testing)

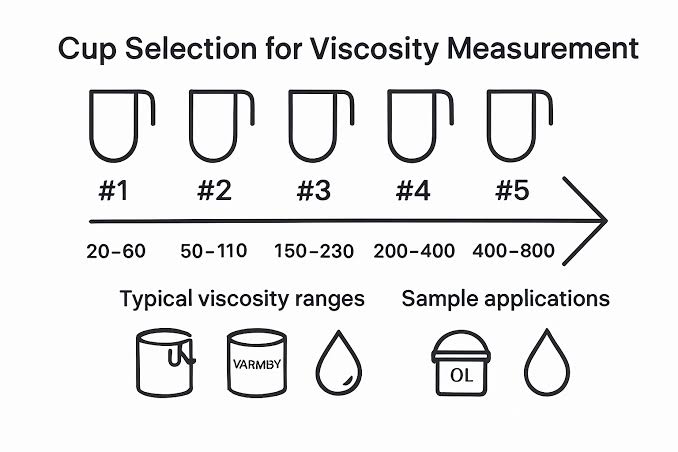

Paint viscosity directly impacts atomization quality, flow-out, and sagging. A #2 Zahn Cup is the standard field instrument used for testing aviation primers and polyurethane topcoats.
Zahn Cup Test Procedure:
- Ensure paint and solvent reducer are mixed thoroughly and stabilized at room temperature ($70^\circ\text{F}$ to $77^\circ\text{F}$ [$21^\circ\text{C}$ to $25^\circ\text{C}$]).
- Submerge the Zahn cup completely into the mixed coating.
- Lift the cup vertically out of the liquid while starting a precision stopwatch simultaneously.
- Stop the timer the exact instant the continuous stream of fluid breaks at the bottom orifice.
Viscosity Standards:
- Typical Epoxy Primers (#2 Zahn Cup): $16$ to $22\text{ seconds}$ efflux time.
- Typical Polyurethane Topcoats (#2 Zahn Cup): $17$ to $23\text{ seconds}$ efflux time.
3. Dry Film Thickness (DFT) Gauges & Measurement
Verifying total dry film thickness ensures the coating provides full corrosion resistance without adding unnecessary weight to the aircraft structure.
- Magnetic / Eddy Current Gauges: Non-destructive gauges (e.g., Elcometer or Positector) measure paint thickness over non-ferrous aluminum substrates.
- Wet Film Thickness (WFT) Comb: Used during application to predict final DFT.$$\text{Target WFT} = \frac{\text{Target DFT}}{\%\text{ Volume Solids}}$$
4. Paint Defect Troubleshooting Guide
When surface flaws occur, technicians must analyze root causes to rectify application or environmental parameters.
| Defect Type | Visual Appearance | Primary Root Cause | Corrective Action |
| Orange Peel | Bumpy texture resembling the skin of an orange | Paint viscosity too high; low atomization pressure; gun held too far away ($>8.0”$ [203.2 mm]) | Reduce paint per spec; increase inlet air pressure; adjust spraying distance to $6.0”$–$8.0”$ [152.4–203.2 mm] |
| Runs & Sags | Vertical dripping or curtain-like tears of heavy paint | Excessive wet film applied in a single pass; slow-evaporating reducer; gun held too close ($<6.0”$ [152.4 mm]) | Scuff sand smooth after cure; apply lighter overlap coats; use correct seasonal reducer |
| Fisheyes | Small circular craters exposing lower primer/substrate | Silicone, oil, or water contamination on the substrate or in compressed air lines | Install oil/moisture separators on air lines; perform strict two-rag solvent degreasing prior to painting |
| Blistering / Pinholes | Bubbles forming under or within the topcoat | Trapped solvent or moisture evaporating rapidly due to forced heat before flash-off | Allow adequate flash-off time (15–30 mins) between coats before applying elevated heat |
5. Technical Specification Summary Table
| Parameter | Imperial Standard | Metric Standard | Target / Tolerance |
| HVLP Max Cap Pressure | $10.0\text{ PSI}$ | [68.9 kPa] | Maximum regulatory limit for HVLP compliance |
| Inlet Operating Pressure | $25.0\text{ – } 35.0\text{ PSI}$ | [172.4 – 241.3 kPa] | Measured at gun handle gauge under full flow |
| Gun Spray Distance | $6.0” \text{ – } 8.0”$ | [152.4 mm – 203.2 mm] | Kept perpendicular to aircraft skin |
| Topcoat Fluid Tip | $0.039” \text{ – } 0.051”$ | [1.0 mm – 1.3 mm] | Standard fluid nozzle size for polyurethanes |
| Viscosity (#2 Zahn Cup) | $17\text{ – } 23\text{ seconds}$ | [17 – 23 seconds] | Measured at $70^\circ\text{F} – 77^\circ\text{F}$ [$21^\circ\text{C} – 25^\circ\text{C}$] |
Part 3: Aircraft Paint & Surface Protection

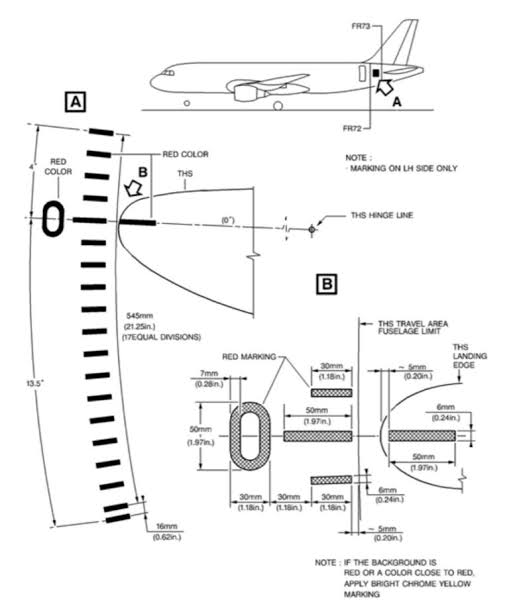

Module 3.3: Aircraft Stenciling, Livery Layout & Multi-Color Masking
Applying aircraft liveries, national markings, and registration markings requires precise layout geometry, specialized masking films, and strict adherence to regulatory dimension standards. This module covers grid-based alignment, multi-color paint sequencing, and stencil edge-sealing techniques.
1. Regulatory Requirements for Registration Markings
Aircraft registration markings (e.g., tail numbers or fuselage marks) are governed by international civil aviation standards (ICAO Annex 7). Markings must maintain high contrast against the background and comply with strict geometric dimensions.
A. Standard Dimensioning Rules (ICAO / FAA / EASA Standards)
- Fuselage / Tail Mark Height: Minimum $12.00”$ [304.8 mm] for standard fixed-wing aircraft.
- Wing Marking Height: Minimum $19.70”$ [500.0 mm] on upper/lower wing surfaces (where applicable).
- Character Width: Each character width must be $\frac{2}{3}$ of the character height (except the letter “I” and number “1”).
- Character Stroke Thickness: Solid line thickness must be $\frac{1}{6}$ of the character height.
- Character Character & Space Gap: Spacing between characters must be between $\frac{1}{6}$ and $\frac{1}{4}$ of the character height.
B. Calculation Example (For $12.00”$ [304.8 mm] Character Height)
- Height ($H$): $12.00”$ [304.8 mm]
- Width ($W = \frac{2}{3}H$): $12.00” \times 0.667 = \mathbf{8.00”}$ [203.2 mm]
- Stroke Thickness ($T = \frac{1}{6}H$): $12.00” \times 0.167 = \mathbf{2.00”}$ [50.8 mm]
- Character Gap ($G = \frac{1}{6}H$): Minimum $2.00”$ [50.8 mm]
2. Grid Alignment & Surface Transfer Techniques
Airliners feature curved fuselage skins, making straight horizontal alignment challenging.
- Fuselage Reference Lines: Establish a reference datum line parallel to the fuselage waterlines or longitudinal stringers using a cross-line laser or chalk line.
- Vinyl Stencil Plotting: Computer-controlled vinyl plotters cut low-tack, solvent-resistant masking films (e.g., Polypropylene or PVC masking stencil films).
- Application Tape & Transfer: Apply high-tack transfer paper over the pre-cut stencil to maintain exact character-to-character spacing during surface placement.
3. Multi-Color Livery Sequencing & Masking Setup
When painting complex multi-color liveries or logos, applying colors in the correct sequence reduces paint buildup edges and prevents bleed-through.
A. The Golden Rule of Paint Sequencing
“Always spray Light Colors First, Dark Colors Last.”
- Spraying dark colors (e.g., navy blue or black) first requires heavy, thick coats of white or yellow topcoat later to cover them, adding unnecessary weight and creating large ridge lines.
B. Step-by-Step Multi-Color Process
- Basecoat Application: Apply the dominant, lightest color (typically Aviation White) across the entire target area. Allow to fully cure.
- Livery Layout & Fine-Line Masking:
- Lay down flexible Fine-Line Vinyl Tape ($0.125”$ to $0.250”$ [3.2 mm to 6.4 mm] wide) along color transition curves to establish crisp borders.
- Cover large non-spray zones using anti-static plastic sheeting and solvent-resistant kraft paper.
- Clear-Coating Mask Edges (Bleed Prevention):
- Critical Technique: Before spraying the second color, spray a light mist of Clear Topcoat or Basecoat White over the fine-line tape edge.
- This seals micro-gaps under the tape line. If any liquid bleeds under the tape edge, it is clear, leaving the secondary color line sharp.
- Secondary Color Application: Spray the darker accent color(s).
- De-Masking Window: Peel fine-line masking tape back at a sharp $180^\circ$ angle when the paint is tack-free but not fully hardened (typically $30$ to $60\text{ minutes}$ post-spray) to prevent pulling up jagged paint edges.
4. Technical Summary Table: Registration & Livery Specifications
| Parameter | Regulatory / Technical Standard (Imperial) | Regulatory / Technical Standard (Metric) | Technical Purpose |
| Fuselage Mark Height | Min $12.00”$ | [Min 304.8 mm] | Standard ICAO visibility requirement |
| Character Width Ratio | $\frac{2}{3} \times \text{Height}$ | [$\frac{2}{3} \times \text{Height}$] | Maintains standard typography proportions |
| Stroke Line Thickness | $\frac{1}{6} \times \text{Height}$ | [$\frac{1}{6} \times \text{Height}$] | Ensures legibility from distance |
| Fine-Line Tape Width | $0.125”$ – $0.250”$ | [3.2 mm – 6.4 mm] | Used for sharp, flexible livery curves |
| Tape De-Masking Angle | Pull back flat at $180^\circ$ | [Pull back flat at $180^\circ$] | Prevents edge lifting and paint chipping |
